DELL EqualLogic PS5000XV Storage – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.
EqualLogic PS5000XV Description

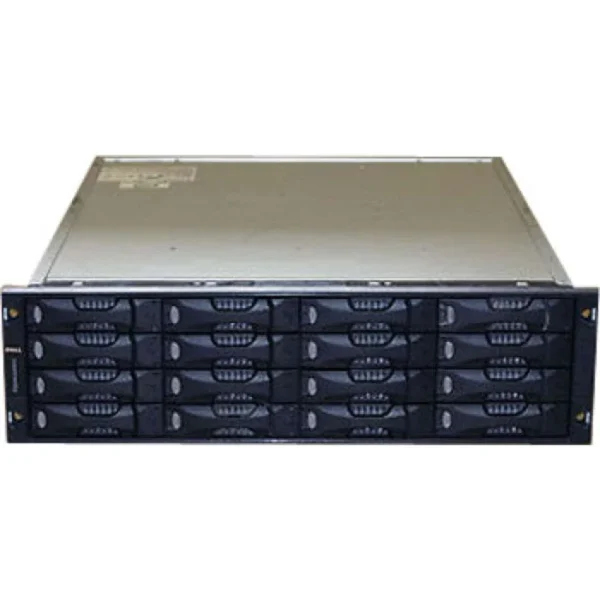

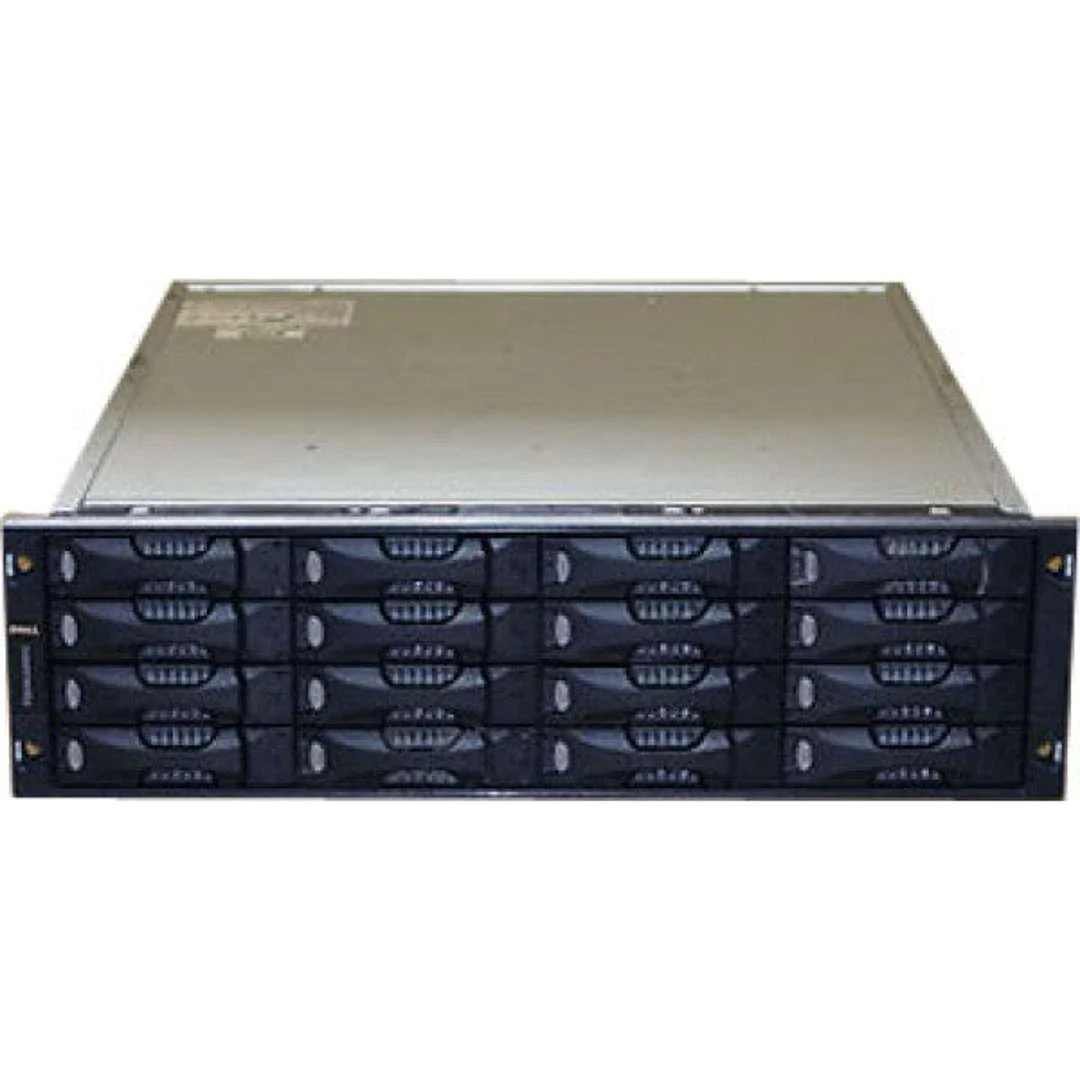

Dell EqualLogic PS5000XV is a virtualized iSCSI SAN that combines intelligence and automation with fault tolerance to provide simplified administration, rapid deployment, seamless scalability, enterprise performance and reliability. When loaded with 15,000 SAS drives, the PS5000XV array delivers high transactional performance with up to 4.8 TB of storage capacity. All PS Series storage arrays include SAN configuration features and capabilities that detect network topology, automatically create RAID sets, and conduct system health checks to help ensure that all components are fully functional.
The PS5000XV array is based on a virtualized modular storage architecture that allows IT managers to purchase only the storage they need, when they need it – helping to avoid underutilization and overprovisioning. All PS Series arrays in a SAN work together to automatically manage data, load balance across all resources, and scale to meet growing storage needs. The PS5000XV includes fault tolerance capabilities through fully redundant and hot-swappable components – dual controllers, standard dual fan trays, dual power supplies, and disk drives with hot spares. The PS5000XV’s dual controllers provide a total of 2GB of battery-backed memory with up to 72 hours of data protection.
PS5000XV ISCSI SAN TECHNICAL FEATURES
| PS5000 | PS5000XV ISCSI SAN TECHNICAL FEATURES | |
|---|---|---|
| Product | High-performance storage array for your demanding applications | |
| Inventory | Dual 1GbE iSCSI controllers with a total of 2GB of battery memory that provide up to 72 hours of data protection | |
| Network | 3x 1GbE copper per controller | |
| Hard | 16 x 3.5″ 15K SAS HDDs | |
| Drive | 146GB, 300GB, 450GB, and 600GB 15K SAS 3.5″ hard drives | |
| System | Up to 9.6 TB | |
| Host | Any standards-compliant iSCSI initiator | |
| Volumes | up to 1,024 | |
| Snapshots | 512 per volume/up to 10,000 total per group | |
| Series Per Group Volume Connections | up to 512 | |
| Supported OS and hypervisors | Windows 2000 Server, Windows Server 2003, Windows Server 2008, including Hyper-V, Windows Vista, Windows Server 2008 R2, including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UK, Mac OS X, VMware ESX Server 3/3.5, ESXi 3.5, Citrix XenServer, Novell NetWare, Virtual Iron | |
| Supported | Automatic RAID 5, RAID 10, RAID 50 | |
| Expansion | Can be combined with other EqualLogic PS Series online | |
| Reliability | Redundant, hot-swappable controllers, power supplies, fans, and disks. Slow power control of the individual disk drive |
|
| Cabinet | Automatic configuration and use of spares; INTELLIGENT; Automatic replacement of bad blocks; Auto-Stat Disk Monitoring System (ADMS) to monitor the integrity of data on disk drives | |
| Management Interfaces | Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-admin support. | |
| Safety | CHAP authentication; Access control for iSCSI; Access control for management interfaces, including RADIUS support | |
| Notification Methods | SNMP traps, email, syslog | |
| Physical | Height: 3U (5.12″) Width: 19.00″ Depth: 21.70″ Weight: 77.60 lbs | |
| Power | Dual 440W DC power supplies. AC voltage: 100-240 VAC. Frequency: 47-63 Hz | |
| Environment | Temperature range: 5 to 35°C / 41 to 95°F Storage Temperature: -20 to 60°C / -22 to 140°F |
Some segments of the economy we help
Some segments of the economy we help
Third-Party Maintenance for Dell End-of-Life (EOL) and Dell End-of-Service-Life (EOSL)
DC Parts has analyzed more than 250 customer contracts using storage, servers, networks, and tapes and shown us that 40-60% of these customers’ equipment operates beyond their end-of-support dates.
There are simple options so you can reduce your expenses and feel more confident about your IT infrastructure. When you choose a custom solution to extend the life of your IT equipment, you can make big savings.
How we can help:
We offer our customers a unique assessment to help analyze their OEM support contracts and understand exactly which devices can be supported in a more affordable way, without compromising their performance.
Dell storage Support
DC Parts Support Services provides support for Dell storage. We work to match the right approach with the right equipment to meet your Dell storage support needs.
With a highly trained team of certified engineers ready to troubleshoot any Dell storage issues, DC Parts is uniquely qualified to serve you. If you would like to speak with a representative about purchasing support on Dell storage , please contact us.
DC Parts support helps businesses of all sizes better manage their IT data centers by providing third-party support and maintenance services to leading equipment manufacturers including: IBM, HPE (HP), DELL EMC, DELL, NETAPP, and more.
With DC Parts support, we manage all your hardware, between manufacturers via one call. DC Parts Support offers flexible service level agreements, certified engineering support teams, and dedicated customer service representatives.
Extend the life and value of your IT assets. Contact DC Parts Support immediately.
