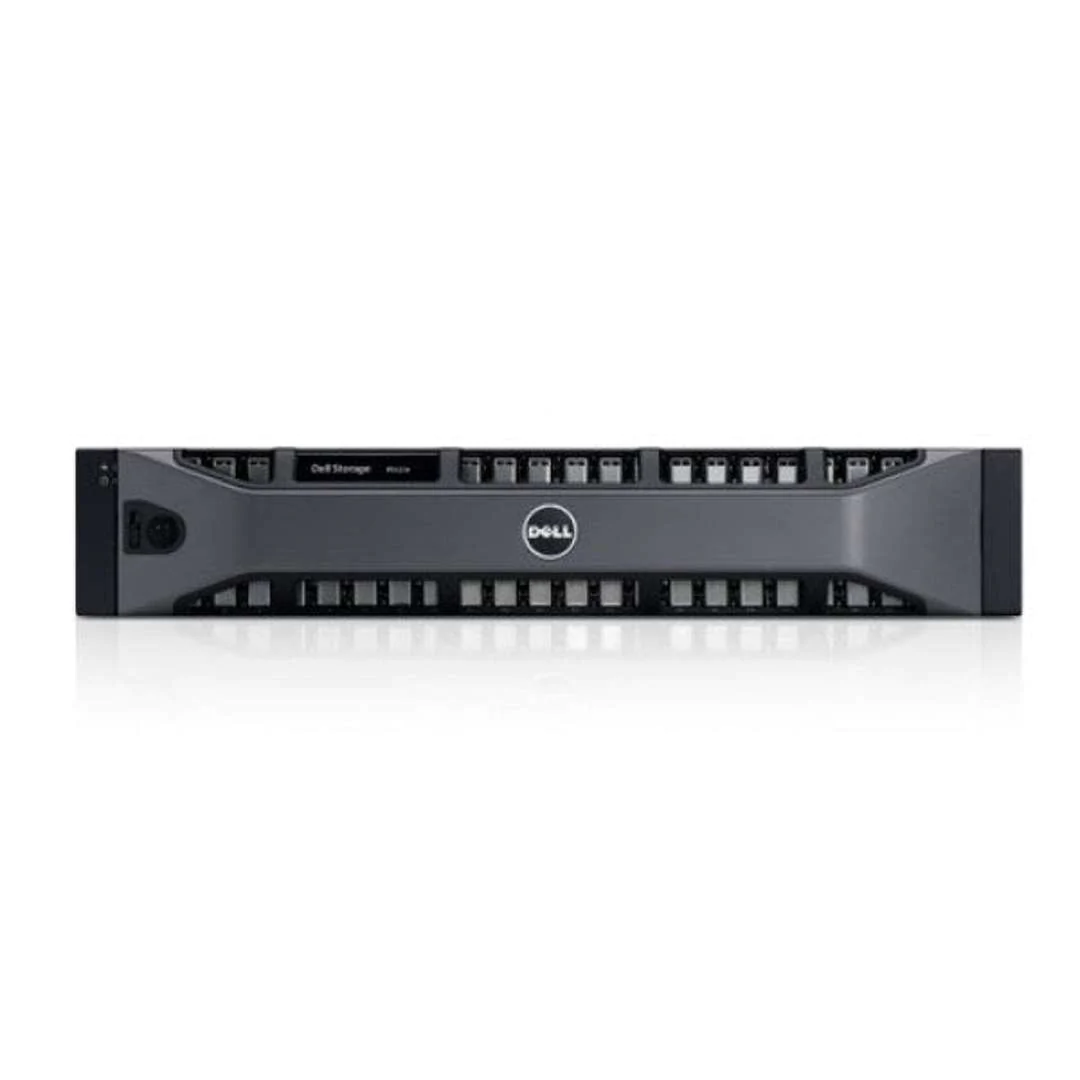

DELL EqualLogic PS4210XV Storage – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.
DELL EqualLogic PS4210XV Description
Dell EqualLogic PS4210 series arrays deliver next-generation storage with increased memory, performance and connectivity options for today’s SMB data centers, remote offices and EqualLogic environments. The PS4210 series offers easy-to-manage storage solutions that are optimized for virtualization platforms and a variety of applications. PS4210 series arrays allow you to automatically negotiate 1 Gb to 10 Gb to make your environment easier to manage, while giving you the flexibility to use SFP+ or 10GBASE-T (copper) ports so you can leverage your existing infrastructure or create low-cost 10GBASE-T.
The PS4210 series arrays are based on the virtualized modular storage architecture that allows you to purchase only the storage you need when you need it. Built-in intelligence capabilities detect network connections, automatically create RAID sets, and perform system health checks. PS4210 series arrays contain fault-tolerant features through the use of fully redundant and hot-swappable controllers, fan trays, power supplies, and disk drives. They offer low TCO through a family of solutions that can be tailored to meet your exact needs.
The PS4210XV array provides up to 14.4 TB of storage in a 2U 2.5″ drive configuration with high-performance 15K SAS drives.
EOS: 10/10/2016
PS4210XV ISCSI SAN TECHNICAL FEATURES
| PS4210 | PS4210XV ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product | Highest Performance HDD System |
| Inventory | Dual controllers with 16 GB non-volatile memory (8 GB per controller) with up to 32 GB of non-volatile memory in a group of 2 arrays |
| Network | 10GbE connectivity; 2x 10GBASE-T with RJ45 or 2x 10GbE SFP+ for fiber or two-axis copper cabling; Network Management: 1x 100BASE-TX per controller |
| Hard | 24x Hot Pluggable 2.5″ 15K SAS |
| Drive | 300 GB, 600 GB 2.5″ 15K SAS |
| System | Up to 14.4 TB (up to 28.8 TB with 2 arrays) |
| Host | Any standards-compliant iSCSI initiator |
| Supported OS and hypervisors | Microsoft Windows Server including Hyper-V, VMware ESX Server, Red Hat Enterprise Linux (RHEL), SUSE Enterprise Linux (SLES), Oracle Linux, Citrix XenServer, Oracle Solaris, IBM AIX, HP-UX, MAC OS X, Novell NetWare |
| Supported | RAID 6, RAID 10, RAID 50 |
| TCP | IPv4 SAN and management traffic supported and IPv6 SAN and in-band management supported |
| Expansion option | Can be combined with other EqualLogic PS Series arrays in the same SAN group, online. A maximum of 16 total arrays per group that can support up to two PS4xxx arrays and 14 PS6xxx arrays. A maximum of two arrays can be in a PS4xxx series group with up to 144 TB |
| Reliability | Hot-swappable redundant controllers with vertical port sharing; hot-swappable disks and power supplies |
| Cabinet | CHAP authentication; Access control lists for iSCSI, as well as new access control policies; Access control for management interfaces, including support for Active Directory, LDAP, or RADIUS |
| Management | Multi-group event and performance monitoring tool for SAN Headquarters; Serial console; Ability to set up a separate management network; SNMP, Telnet, SSH, HTTP, Web (SSL), Host Script, Multi-Administrator Support |
| Safety | CHAP authentication; Access control for iSCSI; Access control for management interfaces, including RADIUS support |
| Notification Methods | SNMP traps, email, syslog |
| Physical | Height: 2/U (3.41″) – Width: 17.57″ – Depth: 21.3″ – Maximum Weight: 53.1 lbs |
| Power | Dual 700W power supplies; Frequency: 50/60 Hz |
| Rack Support | ReadyRails II static rails for tool-free mounting in 4-post racks with square or round holes without threads or tool-mounting in 4-post racks with tapped holes |
