DELL EqualLogic PS4000XV Storage – With warranty and technical service for installation or support.
DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL arrays are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.

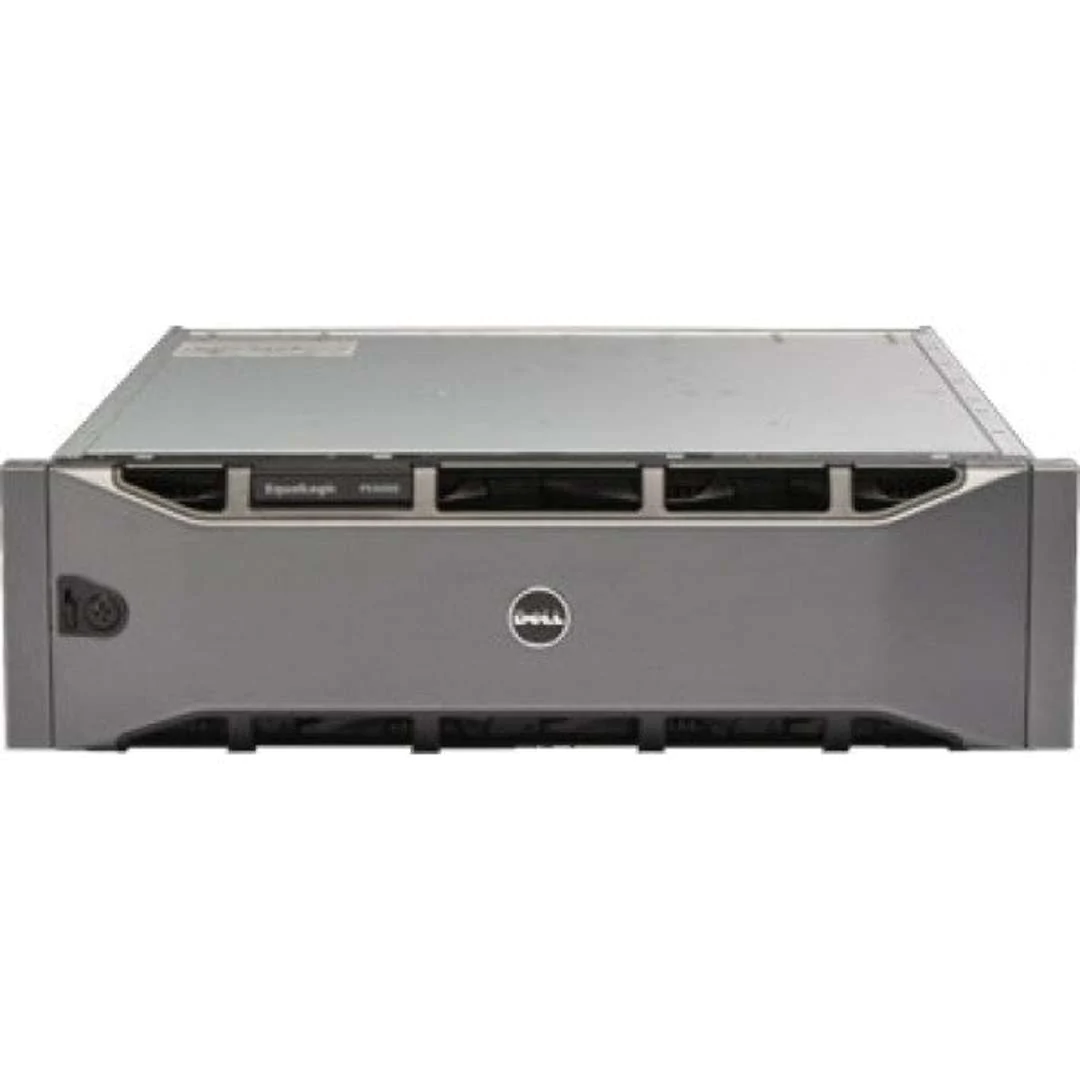

DELL EqualLogic PS4000XV Description
Dell EqualLogic PS4000XV is a virtualized iSCSI SAN array designed to bring enterprise-class capabilities, intelligence, automation and reliability to remote sites or branch office storage deployments. The PS4000XV addresses simplified administration, rapid deployment, and an affordable price point while offering a complete suite of enterprise-class data protection and management capabilities, solid performance, scalability, and fault tolerance. Loaded with 15k SAS drives, the PS4000XV array delivers the best performance of the PS4000 series with strong IOPS performance for branch office deployments.
All PS Series storage arrays include San configuration features and capabilities that detect network connections, automatically create RAID sets, and conduct system health checks to help ensure all components are fully functional. The PS4000XV is based on a virtualized modular storage architecture that allows IT managers to purchase only the storage they need, when they need it – to help prevent underutilization and overprovisioning. All PS Series arrays within a SAN work together to automatically manage data, load balance across all resources, and scale to meet growing storage needs.
The PS4000XV is designed to meet and exceed the stringent requirements of the enterprise data center and remote office. The PS4000XV includes fault tolerance capabilities through fully redundant and hot-swappable components – standard dual controllers, dual fan trays, dual power supplies, and disk drives with hot spares.
EOS: 10/10/2016
PS4000XV ISCSI SAN TECHNICAL FEATURES
| PS4000 | PS4000XV ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product | High-capacity storage for your demanding applications |
| Inventory | Dual 1GbE iSCSI controllers with a total of 4GB of battery-powered memory that provides up to 72 hours of data protection |
| Network | 2x 1GbE Copper; 1x 10/100 Copper (optional management network only) per controller |
| Hard | 16 x 3.5″ 15K SAS HDDs |
| Drive | 300GB, 450GB, and 600GB 15K SAS hard drives |
| System | Up to 9.6 TB |
| Host | Any standards-compliant iSCSI initiator |
| Volumes | up to 256 |
| Snapshots | 128 per volume/up to 2,048 total per group |
| PS4000 | Up to 256 per pool/512 per group |
| Supported OS and hypervisors | Windows 2000 Server, Windows Server 2003, Windows Server 2008 including Hyper-V, Windows Vista, Windows Server 2008 R2 including Hyper-V, Windows XP, Red Hat Enterprise Linux, SUSE Linux Enterprise, Sun Solaris, IBM AIX, HP-UK, Mac OS X, VMware ESX Server 3/3.5/4/4.1/5, ESXi 3.5/4/4.1/5, Citrix XenServer, Novell NetWare |
| Supported | RAID 5, RAID 6, RAID 10, RAID 50 |
| TCP | IPv4, IPv6 Core Support |
| Expansion option | Can be combined with other EqualLogic PS Series arrays in the same online SAN group. A maximum of two PS4000 series arrays can be in a group. |
| Reliability | Optional redundant and hot-swappable controllers; hot-swappable power supplies/cooling fans, and disks. Individual disk drive slot power control |
| Cabinet | Automatic configuration and use of spares; INTELLIGENT; Automatic replacement of bad blocks; Auto-Stat Disk Monitoring System (ADMS) to monitor the integrity of data on disk drives |
| Management Interfaces | EqualLogic SAN Headquarters multi-group performance and event monitoring tool. Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-admin support. |
| Safety | CHAP authentication; Access control for iSCSI; Access control for management interfaces, including RADIUS support |
| Notification Methods | SNMP traps, email, syslog |
| Physical | Height: 3U (5.12″) Width: 19.00″ Depth: 21.70″ Weight: 79.60 lbs |
| Power | Dual 440W DC power supplies. AC voltage: 100-240 VAC. Frequency: 47-63 Hz |
| Environment | Temperature range: 5 to 35°C / 41 to 95°F Storage Temperature: -20 to 60°C / -22 to 140°F |
