DELL EqualLogic PS3900XV

Warranty: up to 12 months

SKU Storage DELL EqualLogic PS3900XV Category Storage DELL EqualLogic, Dell Tags DELL, DELL EQUALLOGIC, PS3900XV, storage

Storage DELL EqualLogic PS3900XV – With warranty and technical service for installation or support.



A DC Parts is a distributor of new and refurbished DELL equipment and accessories. Our technology experts can help you select and configure the right DELL server solution for your specific data needs. Like all of our equipment, DELL storages are fully tested, so you can count on worry-free service for years to come. And should the need arise, our team of certified engineers are on hand to provide support for any issues you may have. If you would like to speak with a representative about DELL equipment offerings, please contact us.

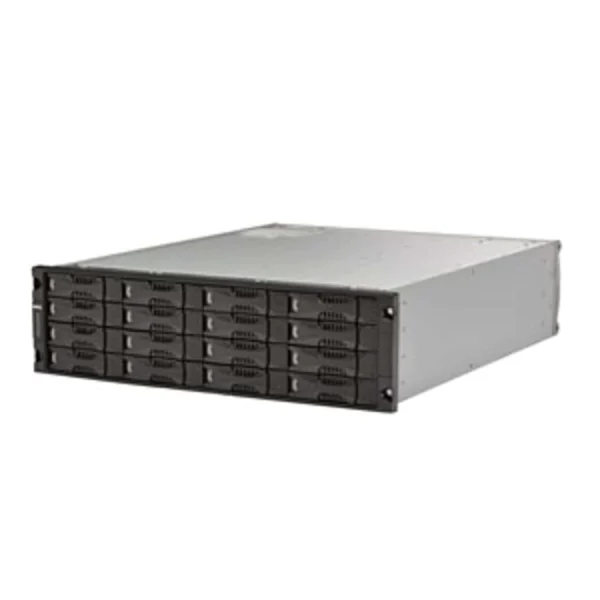

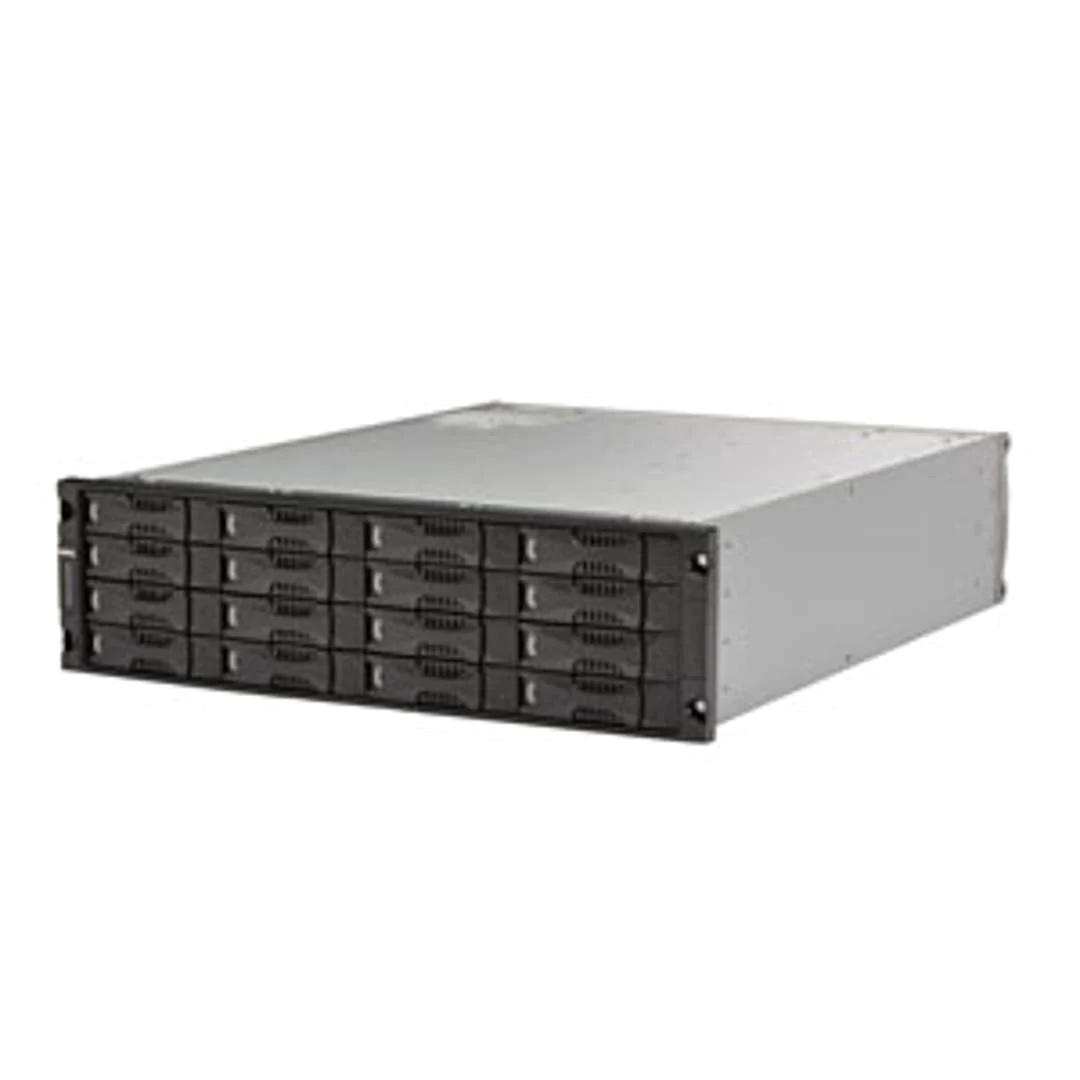

DELL EqualLogic PS3900XV

The PS3900XV storage array is equipped with sixteen 15K SAS drives to deliver maximum IOPS, providing high performance storage suitable for the I/O intensive workloads of enterprise transactional databases.

The PS3900XV offers up to 4,8TB of storage in a 3U/3,5 form factor. The PS3900XV offers several data services including: automatic replication, automatic load balancing, automatic snapshot manager, automatic statistics disk monitoring system (ADMS), volume consistency sets, multipath I/O, pooled and tiered, RAID load balancing, Volume Cloning, Volume Management, Volume Snapshot and much more.

EOS: 10/10/2016

PS3900XV TECHNICAL CHARACTERISTICS
PS3900 SERIES FEATURES PS3900XV TECHNICAL CHARACTERISTICS
product settings High-capacity storage for your demanding applications
Inventory controllers Dual SAS controllers with a total of 2GB of battery-backed memory that provide up to 72 hours of data protection
network interfaces 3x 1GbE copper per controller
hard disk drives 16 3,5″ 15K SAS HDDs
drive capacities 3,5″ 300GB 15K SAS Hard Drives
System capabilities Up to 4,8 TB
host protocol Any standards-compliant iSCSI initiator
Volumes up to 1.024
Snapshots 512 per volume / up to 10.000 total per group
PS series volume connections per group up to 512
Supported OS and hypervisors Windows 2000, Windows Server 2003, Windows XP, NetWare, Linux, Solaris, AIX, HP-UX, Mac OS X, VMware ESX
RAID supported Auto RAID 5, RAID 10, RAID 50
Reliability Redundant, hot-swappable controllers, power supplies, fans and disks.
Individual disk drive slow power control
Mirrored write-back cache with 72-hour battery backup
cabinet monitoring system Automatic configuration and use of spare parts; SMART; Automatic replacement of bad blocks; Auto-Stat Disk Monitoring System (ADMS) to monitor data integrity on disk drives
management interfaces Console Serial. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Support for multiple administrators.
Security CHAP authentication; Access Control for iSCSI
Notification Methods SNMP traps, email, syslog
Physics Height: 3U (5,12″) Width: 19,00″ Depth: 21,70″ Weight: 77,60 lbs
The ability to Dual 450W power supplies
AC Voltage: 100-240 VAC.
Frequency: 47-63 Hz
Power consumption: 530VA
Environmental Temperature range: 5 to 35°C / 41 to 95°F
Storage temperature: -30 to 60°C / -22 to 140°F
