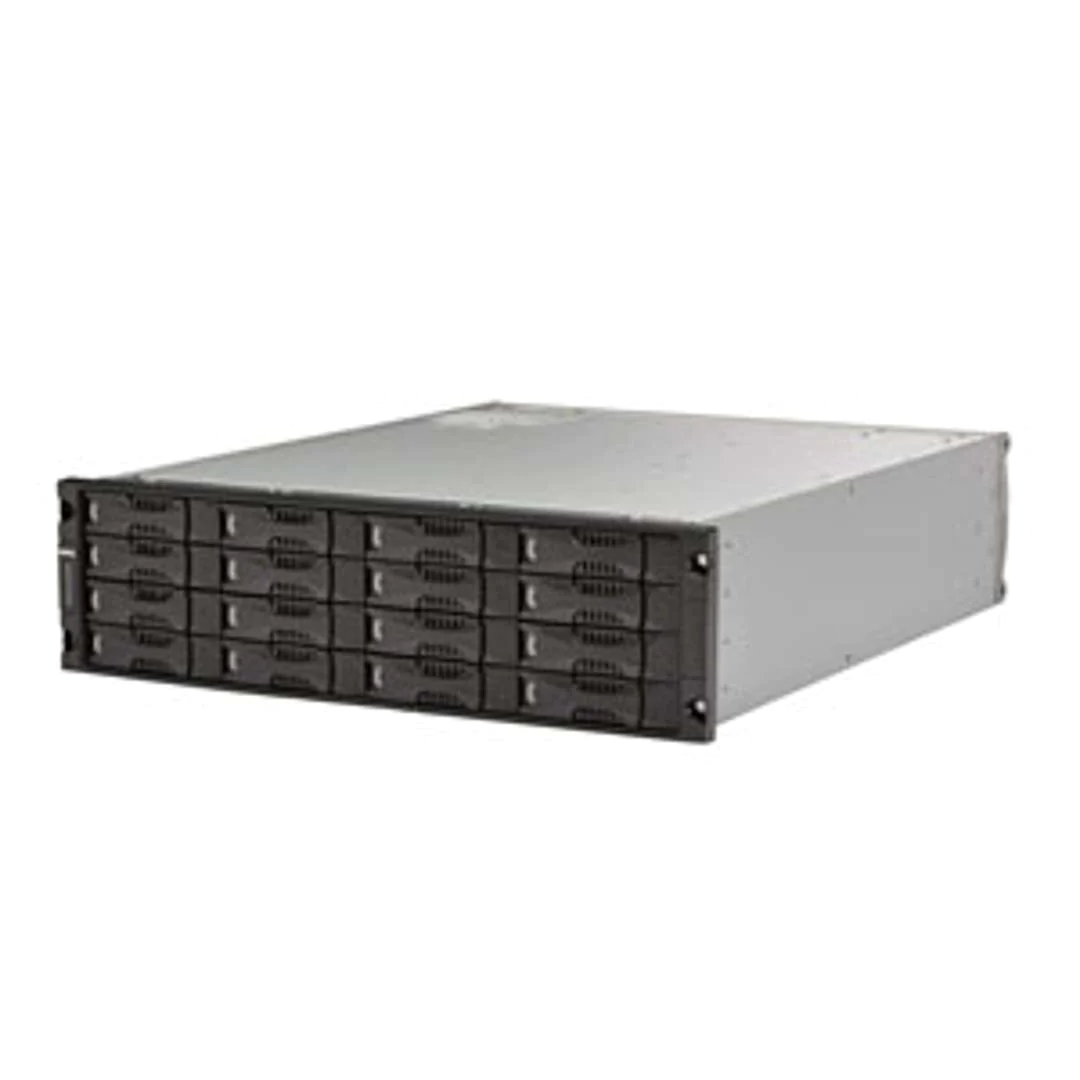

Description of the DELL EqualLogic PS3800XV
The PS3800XV storage array is equipped with sixteen 15K SAS drives to deliver maximum IOPS, providing high performance storage suitable for the I/O intensive workloads of enterprise transactional databases.
The PS3800XV offers up to 2,3TB of storage in a 3U/3,5 form factor. The PS3800XV offers several data services including: automatic replication, automatic load balancing, automatic snapshot manager, automatic statistics disk monitoring system (ADMS), volume consistency sets, multipath I/O, pooled and tiered, RAID load balancing, Volume Cloning, Volume Management, Volume Snapshot and much more.
EOS: 10/10/2016
PS3800XV TECHNICAL CHARACTERISTICS
PS3800 SERIES FEATURES | PS3800XV TECHNICAL CHARACTERISTICS | |
---|---|---|
product settings | High-capacity storage for your demanding applications | |
Inventory controllers | Dual SAS controllers with a total of 2GB of battery-backed memory that provide up to 72 hours of data protection | |
network interfaces | 3x 1GbE copper per controller | |
hard disk drives | 16 3,5″ 15K SAS HDDs | |
drive capacities | 146 GB 15K SAS 3,5″ hard drives | |
System capabilities | Up to 2,3 TB | |
host protocol | Any standards-compliant iSCSI initiator | |
Volumes | up to 1.024 | |
Snapshots | 512 per volume / up to 10.000 total per group | |
PS series volume connections per group | up to 512 | |
Supported OS and hypervisors | Windows 2000, Windows Server 2003, Windows XP, NetWare, Linux, Solaris, AIX, HP-UX, Mac OS X, VMware ESX | |
RAID supported | Auto RAID 5, RAID 10, RAID 50 | |
Reliability | Redundant, hot-swappable controllers, power supplies, fans and disks. Individual disk drive slow power control Mirrored write-back cache with 72-hour battery backup |
|
cabinet monitoring system | Automatic configuration and use of spare parts; SMART; Automatic replacement of bad blocks; Auto-Stat Disk Monitoring System (ADMS) to monitor data integrity on disk drives | |
management interfaces | Console Serial. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Support for multiple administrators. | |
Security | CHAP authentication; Access Control for iSCSI | |
Notification Methods | SNMP traps, email, syslog | |
Physics | Height: 3U (5,12″) Width: 19,00″ Depth: 21,70″ Weight: 77,6,00 pounds | |
The ability to | Dual 450W power supplies AC Voltage: 100-240 VAC. Input frequency: 50-60 Hz Power consumption: 600W |
|
Environmental | Temperature range: 5 to 35°C / 41 to 95°F Storage temperature: -30 to 60°C / -22 to 140°F |
