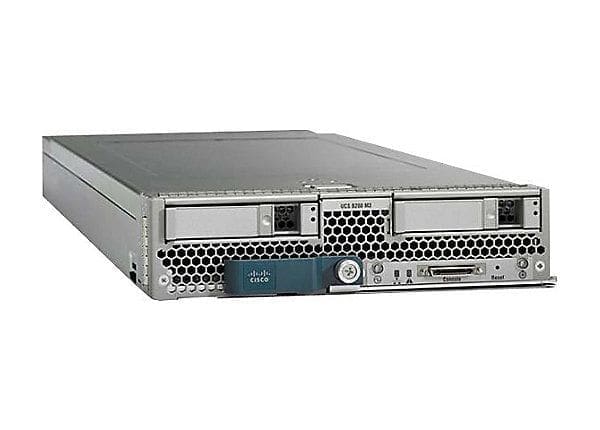

Cisco UCSB-B200-M3 - UCS Mini Smart Play 8 B200 M3

Cisco UCS Mini Smart Play 8 B200 M3 Blade Server

  • Brand: Cisco
  • Part #: UCSB-B200-M3
  • Condition: Recondicioned
  • Warranty: 90 days and may be extended to 1 (one) year by DC Parts

Cisco UCSB-B200-M3 – UCS Mini Smart Play 8 B200 M3

Anyone looking for exceptional performance should consider Cisco products, which support a variety of density, performance, and service requirements. Cisco hardware is the most widely used networking equipment for enterprise and service provider edge applications.

A DC Parts is a distributor of new and used Cisco equipment. All of our equipment is backed by our warranty, and our manufacturer-certified engineers can help you troubleshoot any issues, including those related to our impressive inventory of new and used Cisco hardware. If you would like to speak with a representative about purchasing Cisco hardware, please contact us.

A DC Parts is a distributor of new and refurbished Cisco storage and accessories. Our technology experts can help you select and configure the right Cisco equipment solution for your specific data needs.

Because all of our equipment is fully tested, you can count on worry-free service for years to come.

And if needed, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about Cisco equipment offerings, please contact us.

Cisco UCSB-B200-M3 warranty and technical service for installation or support.



Cisco UCS Mini Smart Play 8 B200 M3 Blade Server

  • Brand: Cisco
  • Part #: UCSB-B200-M3
  • Specifications:-
    • Server Type: Blade
    • Packaged Quantity: 2 (Specifications are for a single item)
    • Server Scalability: 2-way
    • Processor: 2 x Intel Xeon E5-2609V2 / 2,5 GHz (Quad-Core)
      • CPU: Intel Xeon E5-2609V2 / 2,5 GHz
      • Number of Cores: Quad-Core
      • CPU Qty: 2
      • Maximum CPU Qty: 2
      • CPU Socket: LGA2011 socket
    • Cache Memory: 20 MB L3 cache
    • Cache per Processor: 10 MB
    • RAM: 64GB (installed) / 384GB (max) DDR3 SDRAM – ECC – PC3-12800
      • Installed Size: 64GB/384GB (Max)
      • Technology: DDR3 SDRAM – ECC
      • Effective Memory Speed: 1866 MHz
      • Memory Speed: 1866 MHz
      • Nominal Memory Speed: 1600 MHz
      • Memory Specification Compliance: PC3-12800
      • Form Factor: 240-pin DIMM
      • Slots: 24 (total) / 16 (empty)
      • Features: Registered, double patent
      • Configuration Features: GB x 8 8
      • Supported RAM: 384 GB registered – ECC ¦ 768 GB reduced load – ECC
    • Storage Controller: RAID (SATA 6Gb/s / SAS 6Gb/s) (LSISAS2004)
      • Type: RAID – integrated
      • Controller Interface Type: SATA 6Gb/s / SAS 6Gb/s
      • Storage Controller Name: LSISAS2004
      • Channel Quantity: 4
      • RAID Level: RAID 0, RAID 1
    • Server Storage Bays: Hot swap 2.5″
    • Hard drive: No HDD
    • Optical Storage: Without Optical Unit
    • Graphics Controller: Matrox MGA G200e
    • Network: 10 GigE, 10Gb FCoE
      • Type: Plugin module
      • Ethernet ports: 4 x 10 Gigabit Ethernet
      • Ethernet Controller: Cisco UCS 1240 Virtual Interface Card
      • Data Link Protocol: 10 Gigabit Ethernet, 10 Gb Fiber Channel over Ethernet (FCoE)
    • Remote Management Controller: Cisco Integrated Management Controller
  • Condition: Recondicioned
  • Warranty: 90 days and may be extended to 1 (one) year by DC Parts

Key Points to Note About These Cisco UCSB-B200-M3 Servers:

The Cisco UCS B200 M3 Blade Server delivers uncompromised density and performance, serving a wide range of workloads, from IT and web infrastructure to distributed databases.

With Intel Xeon E5-2600 and E5-2600 v2 processors, up to 768 GB of RAM, and up to 8 x 10GE, the Cisco UCS B200 M3 provides exceptional performance, memory expandability, and I/O throughput for almost everyone. the applications.

The Cisco UCS architecture, without the need to power and cool switches in each blade chassis, provides a greater power budget, enabling scalability and uncompromised features in blade servers. The Cisco UCS 5108 blade server chassis can accommodate up to eight Cisco UCS B200 M3 blade servers or a combination of B200 M3 blade servers and other UCS blade servers. This refurbished server is backed by a 1-year warranty from DC Parts, offering reliability and ongoing support.
