Dell Cisco Nexus B22Dell 10gbe 8-port SFP+ Extender for M1000e
Anyone looking for exceptional performance should consider Cisco products, which support a variety of density, performance, and service requirements. Cisco hardware is the most widely used networking equipment for enterprise and service provider edge applications.
A DC Parts is a distributor of new and used Cisco equipment. All of our equipment is backed by our warranty, and our manufacturer-certified engineers can help you troubleshoot any issues, including those related to our impressive inventory of new and used Cisco hardware. If you would like to speak with a representative about purchasing Cisco hardware, please contact us.
A DC Parts is a distributor of new and refurbished Cisco storage and accessories. Our technology experts can help you select and configure the right Cisco equipment solution for your specific data needs.
Because all of our equipment is fully tested, you can count on worry-free service for years to come.
And if needed, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about Cisco equipment offerings, please contact us.
Dell Cisco Nexus B22Del warranty and technical service for installation or support.

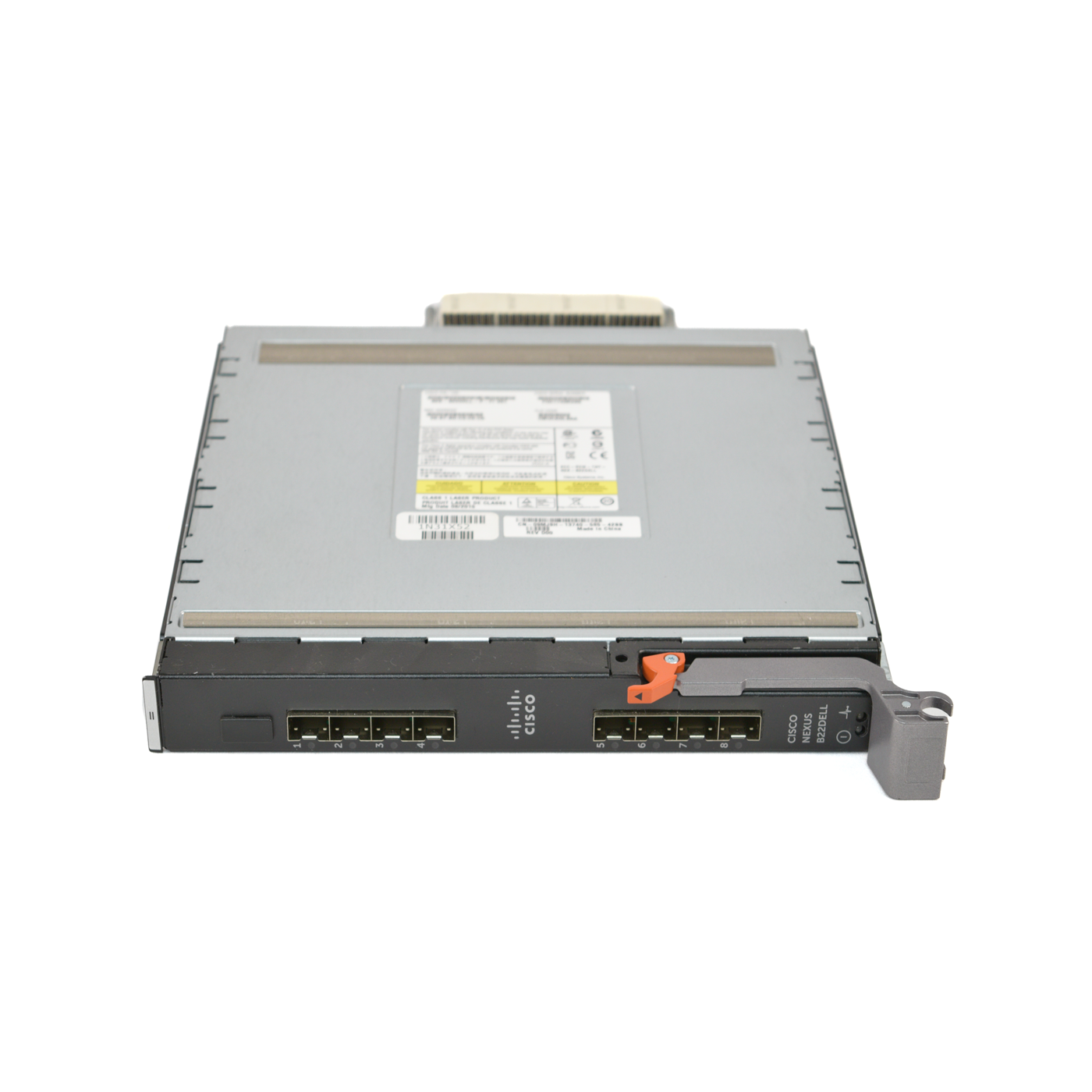

Dell Cisco Nexus B22Dell 10gbe 8 Port SFP+ Dell Mesh Extender Part #: 9MJ9H
- Brand: Cisco
- Dell Part #: 9MJ9H, 09MJ9H
- Cisco Part #: B22DELL
Specifications:
- Host Interfaces: 16
- Host Interface Type: 1/10gbase-kr Internal Midplane Connections
- Mesh Interfaces: 8
- Fabric Interface Type: Fiber, Copper
- Mesh Speed: 80 Gbps in each direction (160 Gbps Full Duplex)
Performance:
- Hardware forwarding at 400 Gbps or 297 Mpps
- Cisco Nexus Parent Switch Supported and Version
- Cisco Nexus 5500 platforms running Cisco Nx-OS Software Release 5.2(1)n1(3) and later
- Cisco Nexus 6000 Series Switches Running Cisco Nx-OS Software Release 6.0 and Later
Features:
- 8 x 10Gb SFP+ External Ports (8 x Ports)
- 16 x 1/10Gb KR Internal Ports (16 x Ports)
- 1 x Uplink Ports (Mesh Interfaces)
- Supported Blade Chassis: Dell Poweredge M1000e Blade Enclosure (Single-Width I/O Module for M1000e Blade Enclosure)
Condition: Recondicioned
Warranty: Up to 1 (one) year warranty DC Parts
Main points to note:
The B22DELL Blade Fabric Extender extends the Cisco Nexus switch fabric to the Dell M1000e blade enclosure, providing a scalable, unified server access platform.
- Highly scalable and consistent server access: The modular distributed system creates a scalable server access environment without relying on the Spanning Tree protocol, providing consistency between blade and rack servers.
- Simplified Operations: A single point of management and policy enforcement using upstream Cisco Nexus switches facilitates blade commissioning and decommissioning through zero-touch installation and automatic configuration of fabric extenders.
- Biggest business benefits: Consolidation, cabling reduction, and investment protection through resource inheritance from the parent switch contribute to reduced operational (OpEx) and capital (CapEx) expenses.
Compatibility:
- Cisco Nexus 5500 and 6000 Series as specified in the mentioned software versions.
Remarks: Each member of the Cisco Nexus B22 platform integrates with the I/O module slot of a third-party blade chassis, facilitating scalability and consistency in server access. Be sure to check compatibility with your specific server model before installation. Follow the manufacturer's guidelines when performing component installations or replacements to ensure correct and reliable operation.
