Cisco DS-C9134-K9 – Cisco MDS 9134 32-Port Multilayer Fabric Switch
Anyone looking for exceptional performance should consider Cisco products, which support a variety of density, performance, and service requirements. Cisco hardware is the most widely used networking equipment for high-end applications from enterprises and service providers.
DC Parts is a distributor of new and used Cisco equipment. All of our equipment is backed by our warranty, and our manufacturer-certified engineers can help you troubleshoot any issues, including those related to our impressive inventory of new and used Cisco hardware. If you would like to speak with a representative about purchasing Cisco hardware, please contact us.
DC Parts is a distributor of new and refurbished Cisco storage and accessories. Our technology experts can help you select and configure the right Cisco equipment solution for your specific data needs.
Because all of our equipment is fully tested, you can count on worry-free service for years to come.
And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about Cisco equipment offerings, please contact us.
Cisco DS-C9134-K9 warranty and technical service for installation or support.

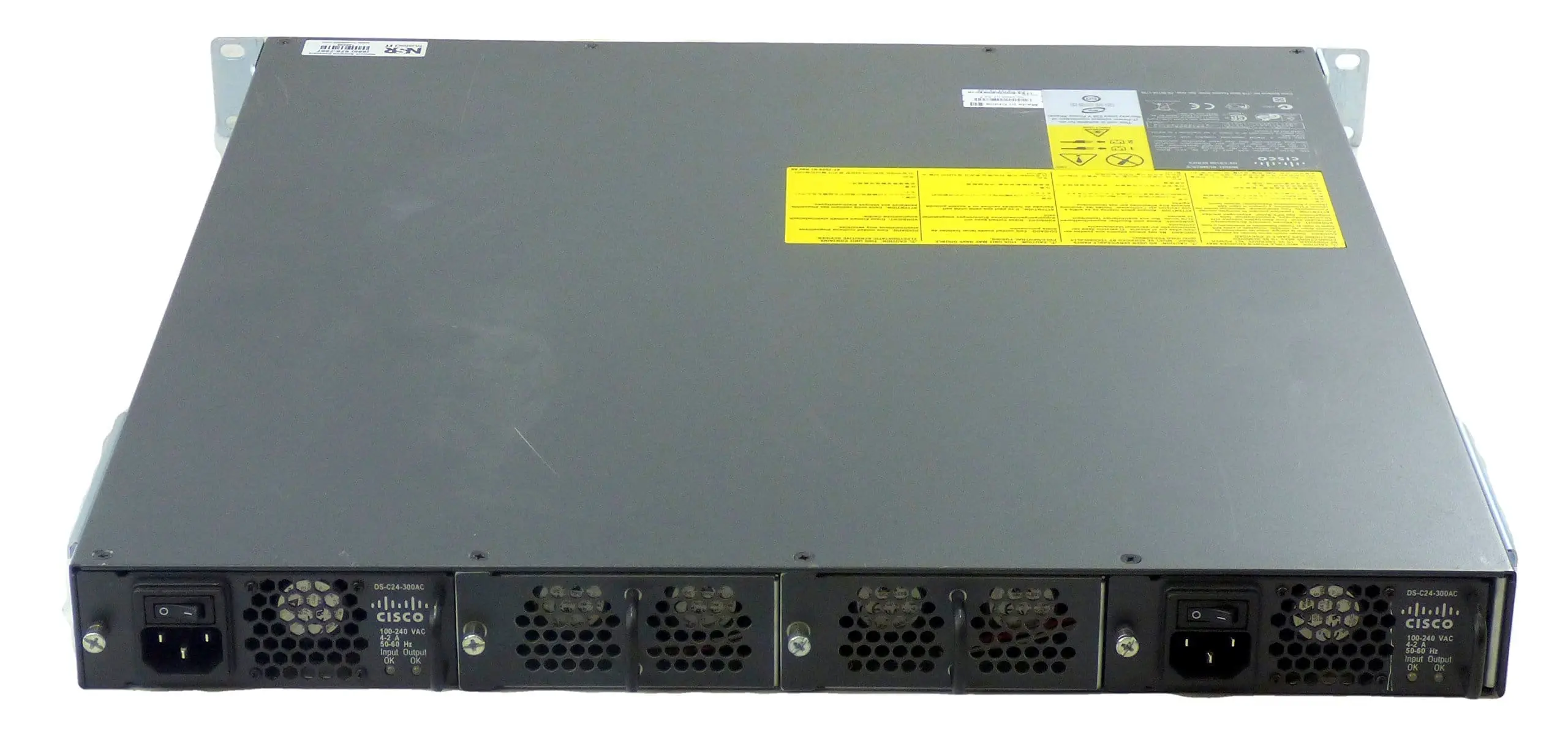

Cisco MDS 9134 32-Port Multilayer Fabric Switch DS-C9134-K9
- Brand: Cisco
- Part Number: DS-C9134-K9
- Specifications:
- Type: Multilayer Fabric Switch
- Subtype: Fibre Channel
- Product Line: MDS
- Model/Family: 9134
- Ports: 32 Port Fabric Switch with 24 active 4 Gbps ports and 2 x 10 Gbps ports with the 10 Gbps port license
- Interfaces:
- 1 x 100Base-tx RJ-45 for management
- 1 x Console Management
- 32 x SFP (Mini-GBIC)
- Aggregate Platform Bandwidth: 352 Gbps
- Features: Access Control List (ACL) Support
- Power Supplies: 300W AC (maximum of two per switch – Part #: DS-C24-300AC)
- Max Qty Supported: 2
- Power Redundancy: Yes
- Input Voltage: 100 – 240 VAC
- Fans: Dual Fans
- Airflow: Front to back
- Total no. No. of Ports: 34
- Form Factor: Rack Mountable
- Rack Units: 1 U
- Power Over Ethernet (PoE): No
- Stacking: Yes
- Maximum units in a stack: 2
- Software: None Included
- Remote Management Protocol: Rmon, Telnet, Snmp 3
- State: Refurbished; All ports tested (guaranteed to be fully functional, original and authentic.)
- Warranty: 90 days and can be extended to 1 (one) year by DC Parts
Key Points:
- The Cisco MDS 9134 Multilayer Fabric Switches (DS-C9134-K9) offer 32 4 Gbps line-rate ports and 2 10 Gbps ports.
- They can be used as a stand-alone switch, top of rack, or in a stack using a 10 Gbps copper connection.
- Suitable as the foundation of small stand-alone SANs or as an edge switch in large core-edge SAN infrastructures.
- It can be stacked in pairs to form a 48-port or 64-port 4 Gbps Fibre Channel switch.
- Impressive flexibility and scalability, support for VSANs for segmentation and isolation.
- High-availability platform with 4 Gbps and 10 Gbps line-rate ports.
- Compatible with Cisco MDS 9500 Series Directors and Cisco MDS 9200 and 9100 Series Switches.
- Optionally configurable 4, 2, and 1 Gbps auto-sensing performance and 10 Gbps for 10 Gbps ports.
- Buffer credits: 16 per port for 4 Gbps ports and 64 per port for 10 Gbps ports.
- Important note: Despite the deprecation, On-Demand Port Activation Licenses are not entering the end-of-life and end-of-sale process. Customers can continue to order these products to upgrade existing Cisco MDS 9134 units at end-user locations around the world.
