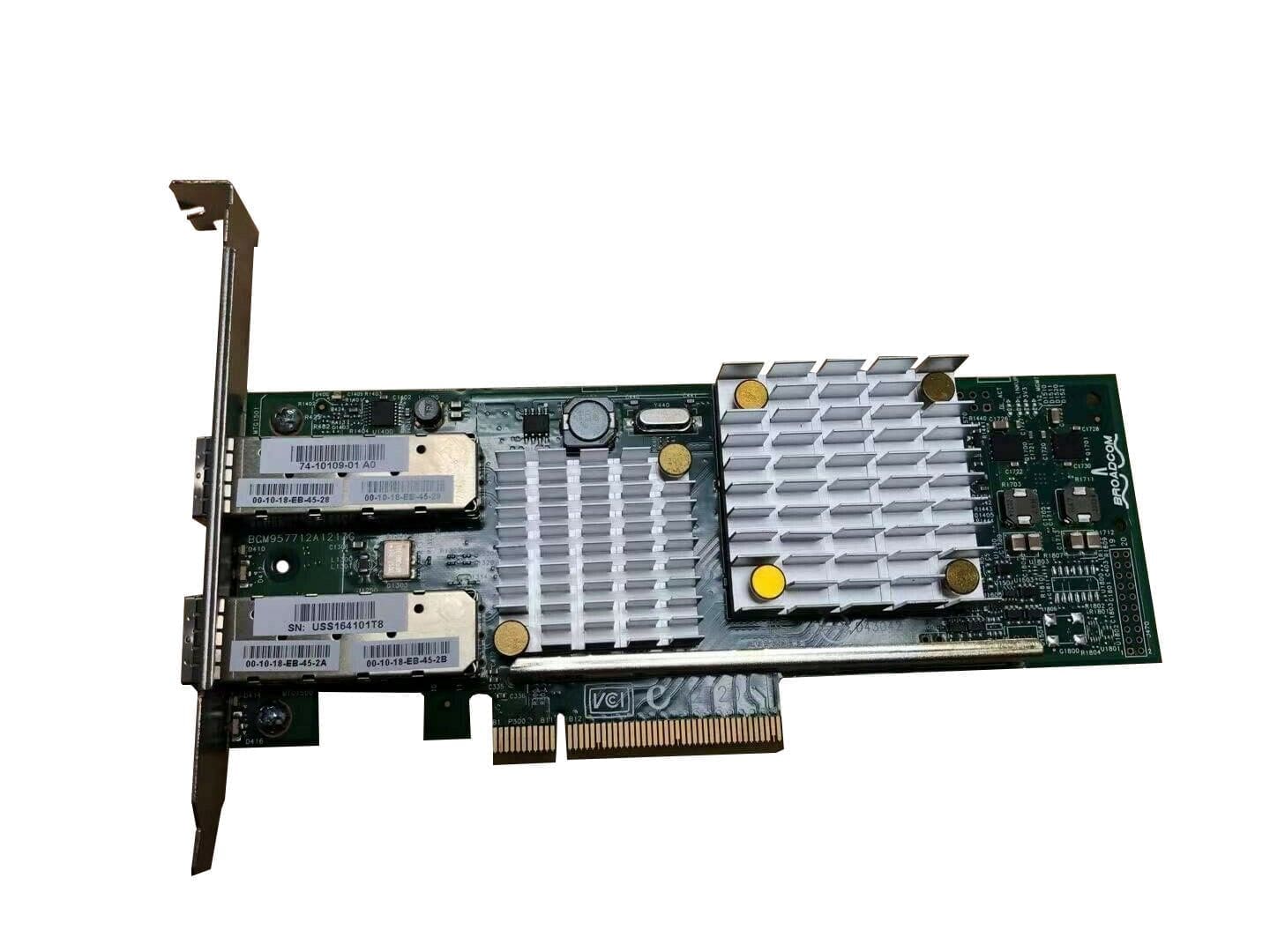

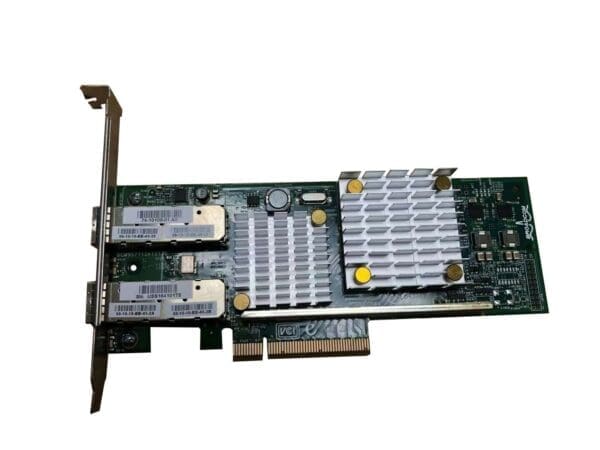

Cisco 74-10109-01

$9.999.999,00

Cisco USCS-PCIe-BSFP V01 10GB Dual Port High Profile Network Adapter Part #(s): 74-10109-01, BCM957711A1113G, USCS-PCIe-BSFP V01

  • Brand: Cisco
  • Part #: 74-10109-01
  • Model: USCS-PCIe-BSFP V01, BCM957711A1113G
  • Specifications:
    • Kind: Network Adapter
    • Description: Cisco USCS-PCIe-BSFP V01 10GB Dual Port Network Adapter
    • Form Factor: Short PCIeâ„¢, low profile card
    • Connector: Two SFP+ (SFP+ connectors—supports optical or copper (twinax) configurations)
    • Cabling: Optical, Copper (twinax)
    • Supported Servers: Cisco UCS C-series
    • PCI Express Base Specification 2.0 (PCI Express x8 2.0, 5GT/s host interface)
    • PCI Bus Power Management Interface, rev. 1.2
    • Advanced Error Reporting (AER)
      • PCI hot plug/hot swap
      • IEEE 802.3ae
    • IEEE 802.3ad (Link Aggregation)
    • IEEE 802.3x (Flow Control)
    • IEEE 802.1q (Virtual LANs)
    • IEEE 802.1ab (Link Level Discovery Protocol)
    • Data Center Bridge (DCB)
      • IEEE 802.1Qbb — Priority-Based Flow Control
      • IEEE 802.1Qaz — Enhanced Data Center Bridge Exchange and Transmission Selection (DCBX)
      • IEEE 802.1Qau Ready — Congestion Notification
    • Management:
      • BACS GUI and CLI
      • WMI and Broadcom Management API
      • Teaming with Smart Load Balancing (SLB) and failover support
      • PCI-SIG SR-IOV ready
      • Cisco Adapter FEX Ready (Jointly designed and tested to support Cisco Adapter Fabric Extender (Adapter FEX) technology.)
  • Condition: Refurbished
  • Warranty: Up to one (1) year warranty DC Parts
SKU 74-10109-01 Categories , Brand:

Cisco 74-10109-01 USCS-PCIe-BSFP V01 10GB Dual Port Network Adapter

Anyone looking for exceptional performance should consider Cisco products, which support a variety of density, performance, and service requirements. Cisco hardware is the most widely used networking equipment for high-end applications from enterprises and service providers.

DC Parts is a distributor of new and used Cisco equipment. All of our equipment is backed by our warranty, and our manufacturer-certified engineers can help you troubleshoot any issues, including those related to our impressive inventory of new and used Cisco hardware. If you would like to speak with a representative about purchasing Cisco hardware, please contact us.

DC Parts is a distributor of new and refurbished Cisco storage and accessories. Our technology experts can help you select and configure the right Cisco equipment solution for your specific data needs.

Because all of our equipment is fully tested, you can count on worry-free service for years to come.

And should the need arise, our team of certified engineers is on hand to provide support for any issues you may have. If you would like to speak with a representative about Cisco equipment offerings, please contact us.

Cisco Network Adapter 74-10109-01 warranty and technical service for installation or support.



Cisco USCS-PCIe-BSFP V01 10GB Dual Port High Profile Network Adapter Part #(s): 74-10109-01, BCM957711A1113G, USCS-PCIe-BSFP V01

  • Brand: Cisco
  • Part #: 74-10109-01
  • Model: USCS-PCIe-BSFP V01, BCM957711A1113G
  • Specifications:
    • Kind: Network Adapter
    • Description: Cisco USCS-PCIe-BSFP V01 10GB Dual Port Network Adapter
    • Form Factor: Short PCIeâ„¢, low profile card
    • Connector: Two SFP+ (SFP+ connectors—supports optical or copper (twinax) configurations)
    • Cabling: Optical, Copper (twinax)
    • Supported Servers: Cisco UCS C-series
    • PCI Express Base Specification 2.0 (PCI Express x8 2.0, 5GT/s host interface)
    • PCI Bus Power Management Interface, rev. 1.2
    • Advanced Error Reporting (AER)
      • PCI hot plug/hot swap
      • IEEE 802.3ae
    • IEEE 802.3ad (Link Aggregation)
    • IEEE 802.3x (Flow Control)
    • IEEE 802.1q (Virtual LANs)
    • IEEE 802.1ab (Link Level Discovery Protocol)
    • Data Center Bridge (DCB)
      • IEEE 802.1Qbb — Priority-Based Flow Control
      • IEEE 802.1Qaz — Enhanced Data Center Bridge Exchange and Transmission Selection (DCBX)
      • IEEE 802.1Qau Ready — Congestion Notification
    • Management:
      • BACS GUI and CLI
      • WMI and Broadcom Management API
      • Teaming with Smart Load Balancing (SLB) and failover support
      • PCI-SIG SR-IOV ready
      • Cisco Adapter FEX Ready (Jointly designed and tested to support Cisco Adapter Fabric Extender (Adapter FEX) technology.)
  • Condition: Refurbished
  • Warranty: Up to one (1) year warranty DC Parts

Key Points to Note About These Cisco Dual Port 74-10109-01 Network Adapters:

The Broadcom® NetXtreme II® dual-port SFP+ BCM57712 adapter with TCP/IP Offload Engine (TOE), iSCSI, and FCoE offload features a rugged, standards-based SFP+ adapter in a low-profile PCI Express® form factor, combining advanced multi-protocol offload technologies with standard Ethernet functionality, providing a reliable, performance-focused solution that can be optimized for high throughput and high I/O per second, with low CPU utilization.

Crucial Benefits:

  • High Performance: Delivers the highest levels of performance for mission-critical mega and enterprise data centers.
    • Full-duplex line rate on both ports.
    • More than 1.0 million IOPS for iSCSI.
    • More than 1.7 million IOPS for FCoE.
  • NIC without Commitment: Broadcom leverages field-proven support for L2 networking, TOE, iSCSI HBA, and FCoE HBA.
  • Low CPU Utilization: Broadcom’s offload architecture minimizes CPU overhead by eliminating competition with the host application for host resources and freeing up valuable CPU cycles for user application processing.
    • iSCSI and FCoE operation is offloaded and accelerated to block storage, with high I/O per second and high bandwidth.
    • RSS is used to avoid bottlenecks by distributing network processing across multiple CPUs.
    • Adaptive interrupt coalescence speeds up interrupt processing.
    • MSI/MSI-X allows for interrupt distribution in multi-CPU systems.
  • Field-Proven Software: Broadcom’s NetXtreme II BCM57712 adapter leverages field-proven networking and storage software stacks for networking and storage.
  • Unified Network and Storage Management: The BACS management application provides a single, centralized management platform for network and storage I/O management.
